تفاصيل المنتج
Place of Origin: Guangdong, China
اسم العلامة التجارية: LINK-PP
إصدار الشهادات: FCC,ROHS,REACH,CE
Model Number: 5406533-1
شروط الدفع والشحن
Minimum Order Quantity: 500PCS
الأسعار: $0.8 - $1.6
Packaging Details: Box & Tray, Tray
Delivery Time: About 1 week
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 5000K-PCS/Month
Port Configuration: |
1 x 1 Single Port |
Series: |
TE RJ45 Connector |
Connector Contact Density: |
Standard |
Performance Category: |
Cat 5 |
Modular Jack Latch Orientation: |
Inverted - Latch Up |
Number of Positions: |
8 |
Right LED Color: |
Green |
Left LED Color: |
Yellow |
Port Configuration: |
1 x 1 Single Port |
Series: |
TE RJ45 Connector |
Connector Contact Density: |
Standard |
Performance Category: |
Cat 5 |
Modular Jack Latch Orientation: |
Inverted - Latch Up |
Number of Positions: |
8 |
Right LED Color: |
Green |
Left LED Color: |
Yellow |
| Items | Single Port RJ45 Jack |
|---|---|
| Part Number | 5406533-1 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| PCB Mount Orientation | Right Angle |
| Tab Direction | Up |
| Shielding | Unshielded |
| Ratings | Cat5 |
| Indicator Type | LED |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Recommended PCB Thickness | 1.57 mm [ 0.062 in ] |
| Termination Post & Tail Length | 2.54 mm [0 .1 in ] |
| Connector Height | 12.83 mm [ 0.505 in ] |
| Pitch | 1.02 mm [ 0.04 in ] |
| Materials | |
| PCB Contact Termination Area Plating Material | Tin |
| Contact Underplating Material | Nickel |
| Contact Material | Phosphor Bronze |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 1.27µm |
| Housing Material | High Temperature Thermoplastic |
| Housing Color | Black |
| Usage Conditions | |
| Operating Temperature Range | -40 – 85 °C [ -40 – 185 °F ] |
| UL Flammability Rating | UL 94V-0 |

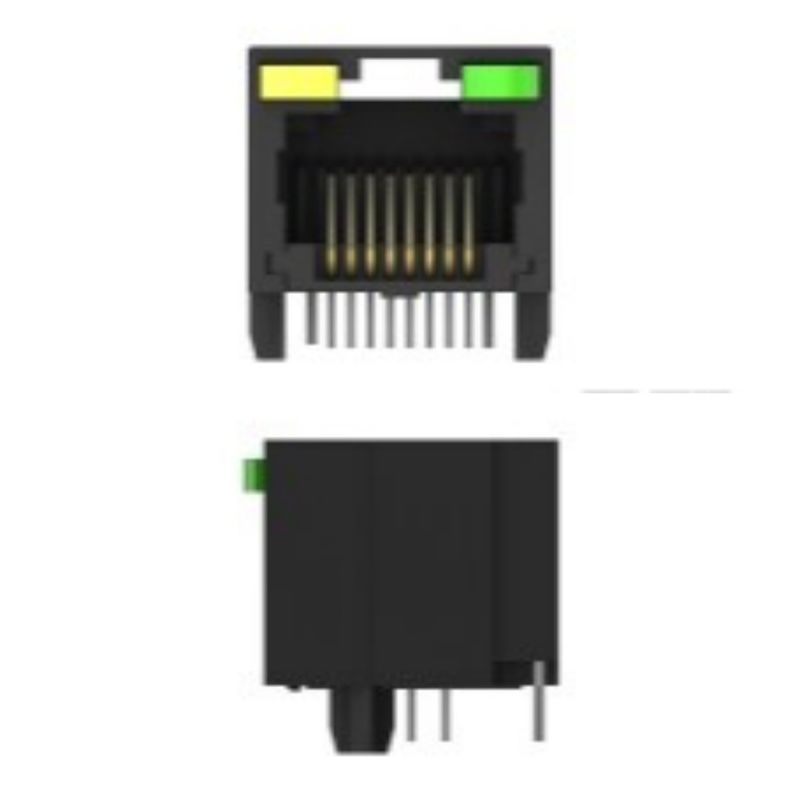

The 5406533-1 RJ45 Modular Jack is used with CAT 5 cables, it supports data transmission speeds of up to 100 Mbps. The 8P8C configuration ensures reliable connectivity for data transmission in network devices. This unshielded modular jack is ideal for environments with minimal electromagnetic interference (EMI), such as homes, offices, and light commercial settings. The RJ45 interface is the standard for Ethernet connections, ensuring easy and secure plug-in connections.
Key features include:
1. 8P8C RJ45 configuration for standard Ethernet connections.
2. Unshielded (UTP) design, suitable for low-interference environments.
3. CAT 5 supports data speeds up to 100 Mbps.
4. Easy installation.
5. Durable construction with reliable contact points for long-term use.
