تفاصيل المنتج
Place of Origin: Guangdong,China
اسم العلامة التجارية: LINK-PP
إصدار الشهادات: UL,RoHS,Reach,ISO
Model Number: 1-1840863-4
شروط الدفع والشحن
Minimum Order Quantity: 400/2000/10K/25K
الأسعار: $0.06-$3.2
Packaging Details: T&R
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Speed: |
1000BASE-T |
Turns Ratio: |
1CT : 1CT |
Number of Ports: |
2x8 Ports |
Mounting Type: |
Through Hole |
PoE Rating: |
30W PoE+ |
Series: |
MagJacks (ICMs) 1-1840863-4 |
Port Configuration: |
Stacked |
Speed: |
1000BASE-T |
Turns Ratio: |
1CT : 1CT |
Number of Ports: |
2x8 Ports |
Mounting Type: |
Through Hole |
PoE Rating: |
30W PoE+ |
Series: |
MagJacks (ICMs) 1-1840863-4 |
Port Configuration: |
Stacked |

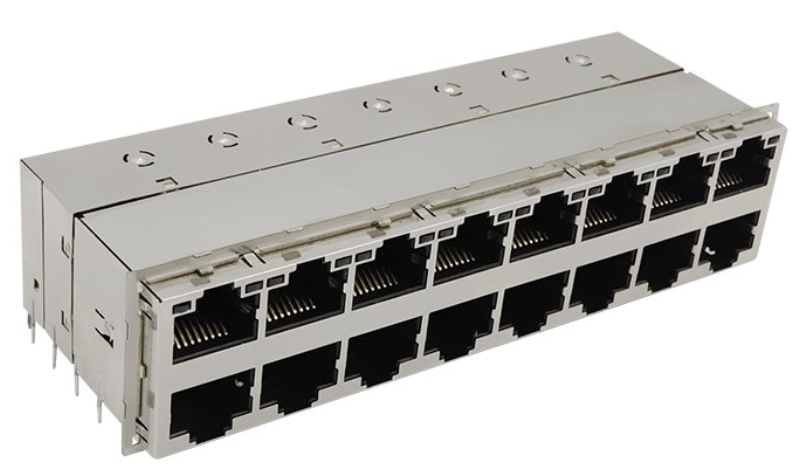

The 1-1840863-4 is a 2x8 stacked RJ45 connector module featuring integrated magnetics, designed to support 1000BASE-T Ethernet applications with PoE+ (30W) capability. This Magjack combines high-performance signal integrity, robust EMI shielding, and compliance with PoE+ power delivery, making it an excellent solution for Gigabit networking equipment, industrial switches, and IP surveillance devices.
| Items |
1000BASE-T RJ45 PoE module |
|---|---|
| Housing Material | Black thermoplastic, UL 94V-0 flame retardant |
| Shielding | Brass with 0.76μm minimum semi-bright nickel pre-plating |
| Contact Plating | Phosphor bronze base 0.27μm min nickel underplate 2.54μm min SAC (SnAgCu) solder dip or pure tin tails Palladium-nickel at mating interface with 2.54μm matte tin finish |
| LED Construction | Diffused epoxy lens with carbon steel frame |
| RJ45 Cavity | Conforms to FCC Part 68 Subpart F |
| LED Indicators | Dual LED (Green/Yellow) per port |
| Green LED | 565 nm, 2.2V typical @ 20mA |
| Yellow LED | 588 nm, 2.2V typical @ 20mA |
| Operating Temperature | 0°C - +70°C |
| RoHS Compliant | YES |
