تفاصيل المنتج
Place of Origin: Guangdong,China
اسم العلامة التجارية: LINK-PP
إصدار الشهادات: UL,RoHS,Reach,ISO
رقم الموديل: HXB7602NL
شروط الدفع والشحن
Minimum Order Quantity: 400/2000/10K/25K
الأسعار: $0.06-$3.5
تفاصيل التغليف: حزمة كرتون أنبوب
وقت التسليم: حوالي 1-2 أيام
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
تدور النسبة: |
1ct: 1ct |
عدد المنافذ: |
ميناء رباعي |
الجهد العزلة: |
1.5 KVrms |
الحث الجانبي الإعلامي: |
100µh (دقيقة) @ 100 كيلو هرتز ، 0.1 فولت |
عملية اللحام: |
لحام الموجة 260 درجة مئوية / 5 ثانية |
رقم الجزء: |
HXB7602NL |
تيار POE: |
600mA لكل زوج |
أبعاد: |
33.50mm × 29.00mm × 16.80 مم |
تدور النسبة: |
1ct: 1ct |
عدد المنافذ: |
ميناء رباعي |
الجهد العزلة: |
1.5 KVrms |
الحث الجانبي الإعلامي: |
100µh (دقيقة) @ 100 كيلو هرتز ، 0.1 فولت |
عملية اللحام: |
لحام الموجة 260 درجة مئوية / 5 ثانية |
رقم الجزء: |
HXB7602NL |
تيار POE: |
600mA لكل زوج |
أبعاد: |
33.50mm × 29.00mm × 16.80 مم |

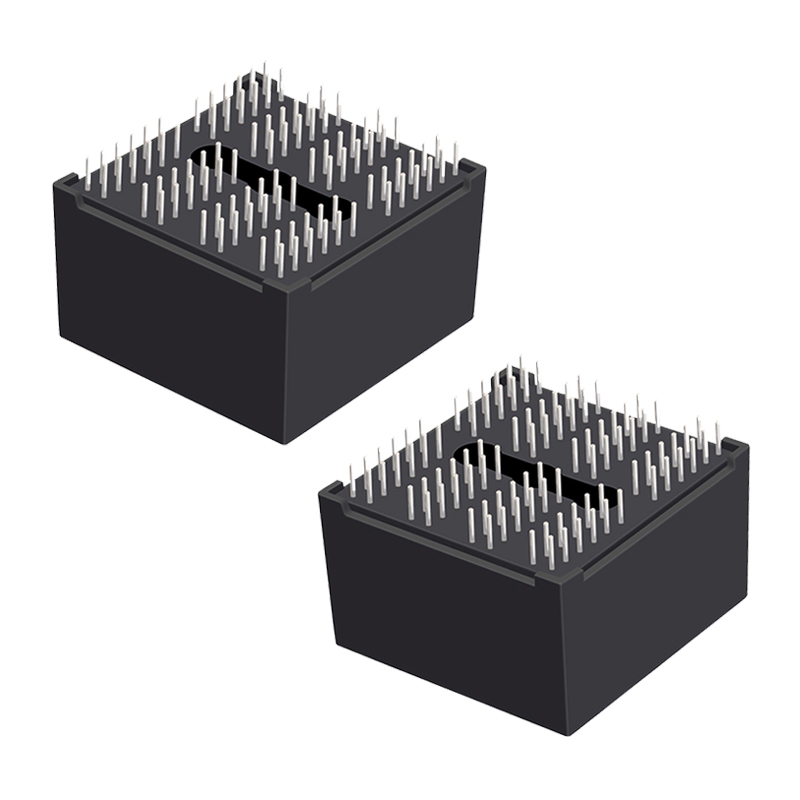

| Part Number | HXB7602NL |
| Turns Ratio | 1CT : 1CT |
| Data Rate Support | 10GBase-T Ethernet (also compatible with 1G/5G standards) |
| Inductance (OCL) | 100 µH (minimum) @ 100 kHz, 0.1 V e |
| Insertion Loss | –1.0 dB max (1–100 MHz) |
| Return Loss | –18 dB min (1–40 MHz); –(18 – 10·log10(f/40)) dB min (40–400 MHz); –(8 – 30·log10(f/400)) dB min (400–500 MHz) |
| Isolation Voltage | 1500 Vrms (primary to secondary) |
| PoE Support | 4-Pair PoE+ (IEEE 802.3at), up to 60 W per module (600 mA per pair) |
| Number of Channels | Quad (4-port) design |
| Operating Temperature | –40 °C to +90 °C |
| Mounting Style | Through-Hole (THT), 96-pin package |
| Dimensions (L × W × H) | 33.5 mm × 29.0 mm × 16.8 mm |
| RoHS Compliance | Yes (meets RoHS environmental standards) |
| Packaging | Tube (standard packing) |
1. What is the HXB7602NL Ethernet Transformer used for?
The HXB7602NL is designed for 10G Ethernet applications with PoE+ support. In simple terms, it enables the transmission of both data and electrical power through the same Ethernet cable, making it ideal for devices such as IP cameras, wireless access points, and industrial switches.
2. How much power can it deliver over Ethernet?
This LAN transformer supports 4-Pair PoE+ (IEEE 802.3at), delivering up to 60W of power. That means it can handle higher-power devices compared to standard PoE, such as PTZ cameras or smart lighting systems.
3. What makes it reliable in industrial environments?
The HXB7602NL PoE+ LAN Transformer operates reliably in temperatures ranging from -40°C to +85°C. It also provides 1500Vrms isolation, protecting connected equipment against surges and ensuring stable performance.
4. How many ports does it support?
It’s a quad-port (4-channel) Ethernet transformer, which means one component can handle four Ethernet ports — making it efficient for high-density networking equipment like multi-port PoE switches.
5. Is it compliant with Ethernet standards?
Yes. The HXB7602NL is fully compliant with IEEE 802.3ab/af/at/bt/bz/an standards, ensuring compatibility with 10Gbps high-speed Ethernet and PoE+ applications.
6. What kind of mounting does it use?
It comes in a 96-pin through-hole package (THT), providing strong mechanical stability for industrial and telecom-grade printed circuit boards.
