Explore the 5520426-4 RJ45 Connector, a single-port Cat3 8P8C right-angle through-hole jack with gold-plated phosphor bronze contacts, UL94V-0 housing, and -40°C to +85°C operating temperature for reliable signal transmission.

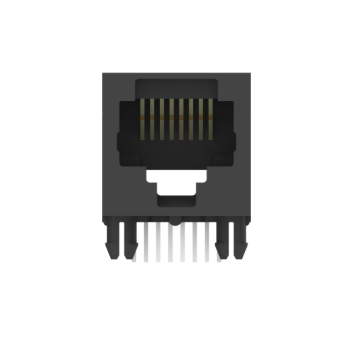

The 5520426-4 Cat 3 RJ45 Jack is a premium-grade, single-port modular jack engineered for reliable printed circuit board (PCB) integration. Designed with a right-angle, standard profile, this 8-position, 8-contact (8P8C) connector delivers Category 3 (Cat 3) performance, supporting data rates up to .01 Gb/s (10 Mbps). Featuring a robust glass-filled PBT housing and 50 µin gold-plated contacts, the 5520426-4 ensures exceptional durability, signal integrity, and mating reliability for telecommunications, networking, and industrial applications.
| Parameter | Specification |
|---|---|
| Part Number | 5520426-4 |
| Connector Product Type | RJ45 Modular Jack |
| Interface Type | RJ45 |
| Port Configuration | Single Port (1 × 1) |
| Number of Positions | 8 |
| Number of Loaded Positions | 8 |
| PCB Mount Orientation | Right Angle |
| Connector Profile | Standard |
| Latch Orientation | Standard – Latch Down |
| Performance Category | Cat 3 |
| Data Rate | 0.01 Gb/s (10 Mbps) |
| Contact Current Rating (Max) | 0.2 A / 1.5 A |
| Shielded | No |
| Circuit Application | Signal |
| Contact Base Material | Phosphor Bronze |
| Contact Mating Area Plating | Gold (Au), 1.27 μm (50 μin) |
| Contact Underplating | Nickel |
| PCB Termination Area Plating | Tin |
| Termination Method to PCB | Through Hole – Solder |
| Termination Post & Tail Length | 3.8 mm (0.15 in) |
| Housing Material | Glass-Filled PBT |
| Housing Color | Black |
| Centerline (Pitch) | 1.02 mm (0.04 in) |
| Mating Entry Location | Side Entry |
| Connector Mounting Type | Board Mount / Panel Mount |
| Panel Mount Feature | Without |
| Indicator Type | No Indicator |
| Connector Height | 16.2 mm (0.638 in) |
| Recommended PCB Thickness | 1.57 mm (0.062 in) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| UL Flammability Rating | UL 94V-0 |
| Packaging Quantity | 152 Pieces |
| Packaging Method | Box & Tray / Package |
The connector is specified for 0.01 Gb/s (10 Mbps) applications and meets Category 3 (Cat3) performance requirements, making it suitable for 10BASE-T Ethernet and voice communication systems.
No. The 5520426-4 is a non-shielded RJ45 jack and does not include EMI shielding or integrated grounding features.
No. The connector is supplied without integrated status LEDs or indicator lights.
The mating contacts utilize 1.27 μm (50 μin) gold plating over nickel underplating, providing excellent durability and corrosion resistance.
The recommended PCB thickness is 1.57 mm (0.062 inches), which corresponds to standard FR-4 board construction.
